Friday Night Hack 4 : Finished up the dc motor controller board.
Written by Walter on 3/12/2006

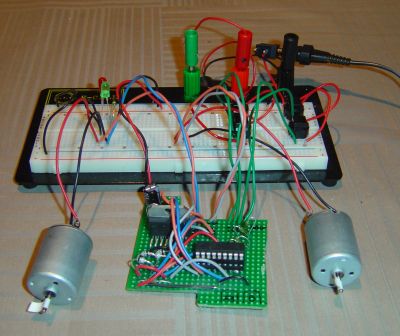

Build this nice dc-motor controller board with the l298n chip. Perfect for all my future motorized projects :).
Here are some pictures:
Pfew that was enough for today, kick back, watch a movie now and have some home made desert :). Also in the picture is both my RCD programmer and the new box I just made for the Suuntu dive computer interface.
Youtube video showing the running motors forward, reverse and various speeds using pulse code modulation Sorry for the shacky video. I definitely need a camera stand if I want to operate buttons and hold a camera at the same time it just doesn't work out :) ):
