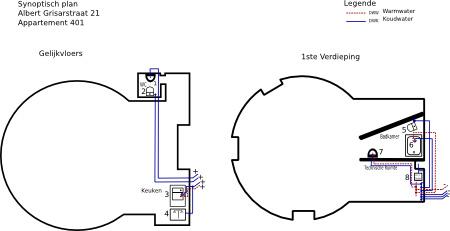

So this is my first 'synoptisch plan' for a water installation inspection. Used inkscape and it took me quite a while to figure out the various symbols etc.

This loft was one I renovated during 2008, 2009 and is located in the kasteelpark.be project.
