16f628a Binary Clock Schematic and hex

Written by Walter

< >

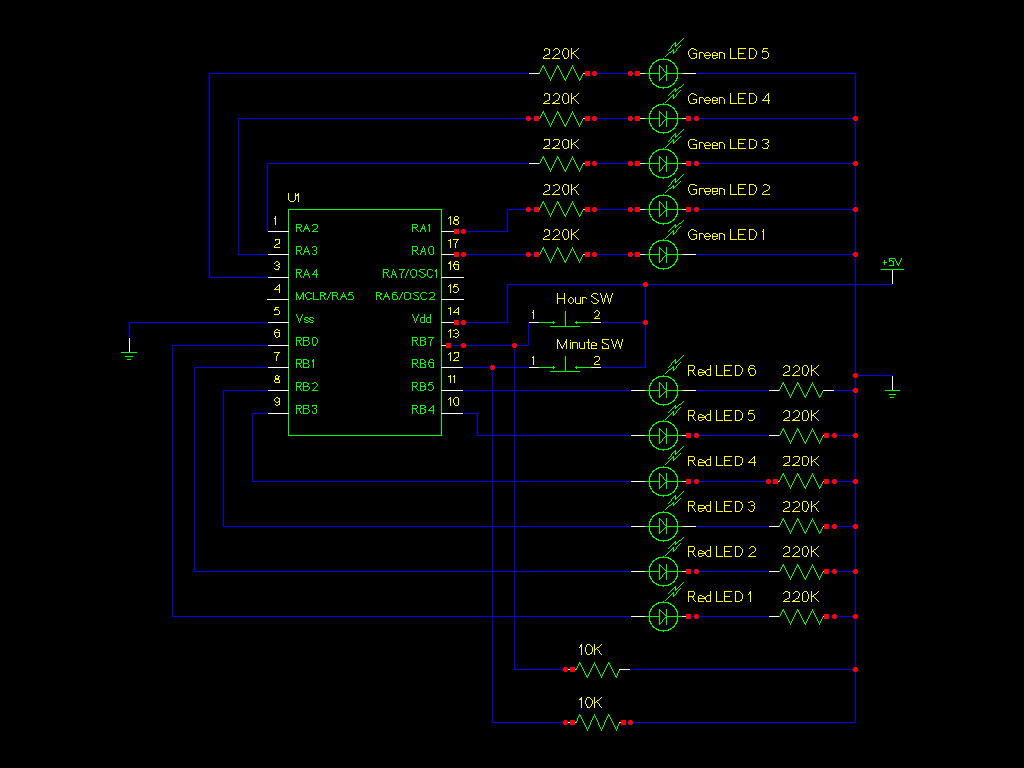

Here is the circuit diagram since we were on www.hackaday.com some might be interested in this:

binclock.hex (works on both 16f627a and 628a)

See earlier/other post for youtube vid and pcb implementation... It should cost you about 5 euro including the pic16f628a (or 627a is fine too) to build this :)

Ow yeah, and ofcourse I'm not guaranteeing this is correct or can be held liable for any damages, time bombs that are built with it etc... (it's my first project and my first electronics schematic I've ever drawn... :) )
